1.0HP Xtreme Dura Non Inverter Wall Mounted Split

MSXD-09CRN8
Xtream Dura Series

  • air magic
    air magic

  • Flash Cooling
    Flash Cooling

  • Prime Guard
    Prime Guard

  • Smart Control (Optional)
    Smart Control (Optional)

Specifications

  • 1.0hp

    capacity

  • 100-160sq.ft

    Application area

  • 2 Years (Full)

    Warranty

  • 5 Years (Compressor)

    Warranty

  • 3 Star

    Star Rating

Full specifications

  • Indoor unit
    • Indoor air flow (H)
      580 (341) m3/h(cfm)
    • Indoor Sound level (H L)
      41/30 dB(A)
    • Dimension(W*D*H)
      835x208x295 mm
    • Packing (W*D*H)
      905x355x290 mm
    • Net Gross weight
      9.1/11.8 Kg
  • Outdoor unit
    • Outdoor Sound level
      51 dB(A)
    • Dimension(W*D*H)
      720x270x495 mm
    • Packing (W*D*H)
      835x300x540 mm
    • Net Gross weight
      25/26.8 Kg
    • Refrigerant Charge
      R32/420g
    • Design pressure
      4.3/1.7 MPa
  • Refrigerant piping
    • Liquid side Gas side
      mm(inch) Φ6.35/Φ9.52(1/4"/3/8")
    • Max. refrigerant pipe length
      20 m
    • Max. difference in level
      8 m
  • Misc
    • Cooling Capacity
      9,200 Btu/h
    • Power consumption
      772 W
    • Running current
      3.36 A
    • CSPF(Cooling seasonal performance factor)
      3.98 Wh/Wh
    • Power supply
      220-240V~,50Hz,1Ph (power supply to indoor) V,Hz,Ph
    • Indoor-Outdoor connection wiring (Not included)
      3x1.5 mm2
    • Power supply wiring(Not included wire)
      3x1.5 mm2
    • Thermostat type
      Wireless Remote Control (Wifi control, Wire control optional)

You May Also Like

1.5HP Xtreme Dura Non Inverter Wall Mounted Split
Model number: MSXD-12CRN8
Color
  • Golden fin
  • Air magic
  • Cold Catalyst Filter
  • Low Noise
  • Smart Diagnosis
  • Follow Me
  • WIFI Control (optional)
1.0HP All Easy Pro Wall Mounted Split
Model number: MSAPB-10CRN8
Color
  • Golden fin (Cooling Coil)
  • High Density Filter
  • 2-way Draining
  • Dual Filtration
  • Air magic
  • Cold Catalyst Filter
  • 3D Airflow
  • Smart Diagnosis
  • Wired Controller (Optional)
  • WIFI Control (optional)
New
1.0HP AF Series Non Inverter R32 Wall Mounted Air Conditioner
Model number: MSAFB-09CRN8-PC2
Color
  • Refrigerant Leakage Detect
  • High Density Filter
  • Cold Catalyst Filter
  • Self-cleaning
  • 2-way Draining
  • Louver Position Memory

Better Together

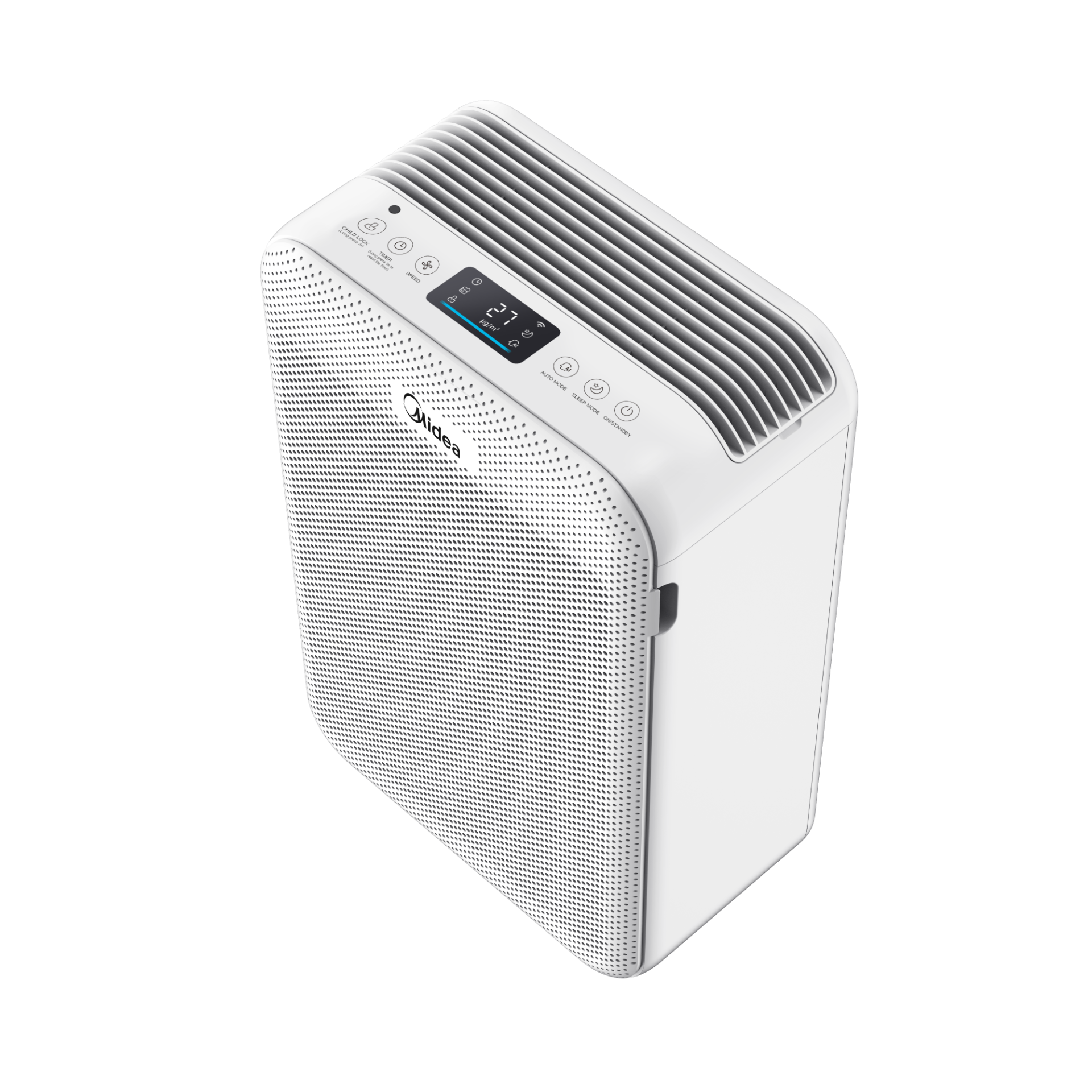

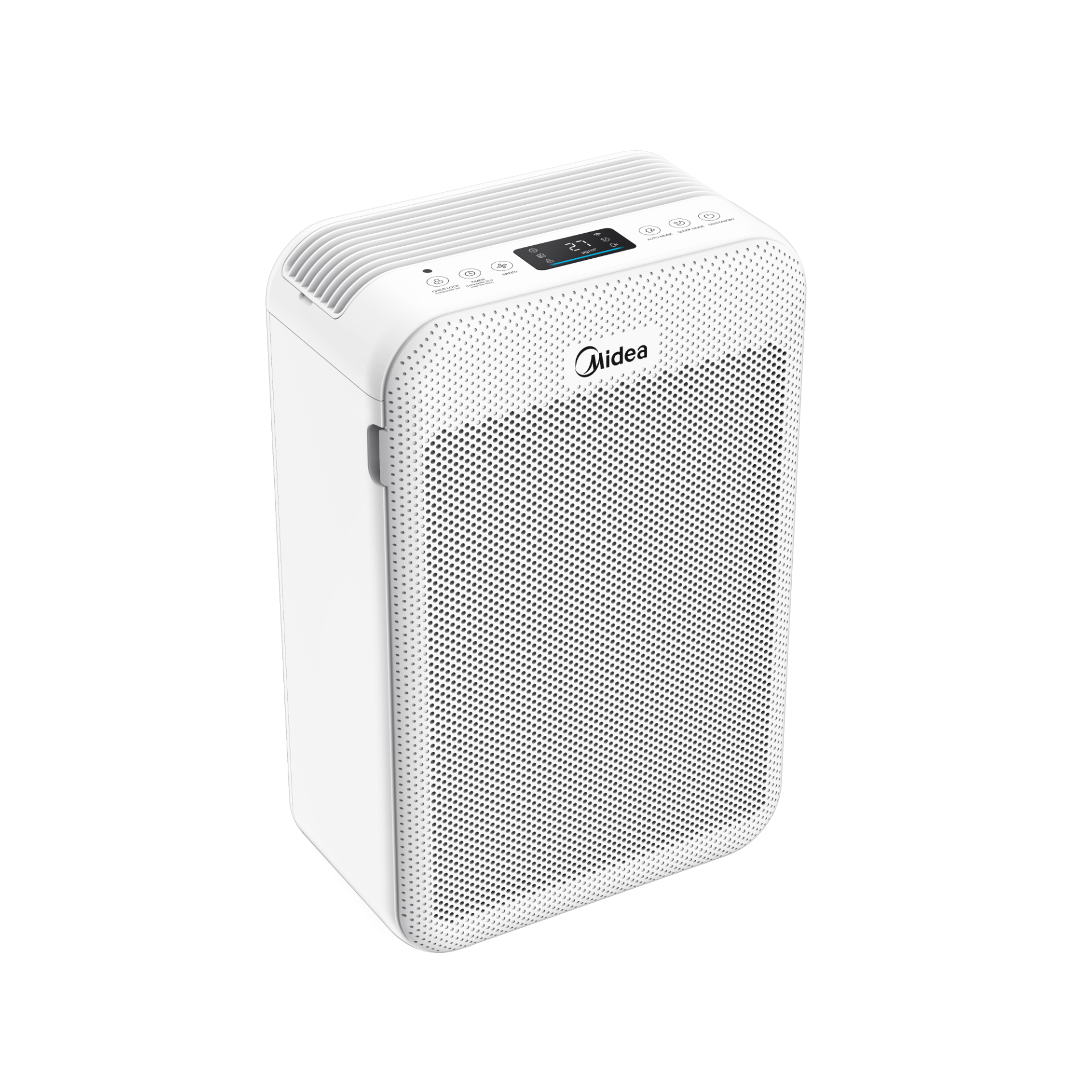

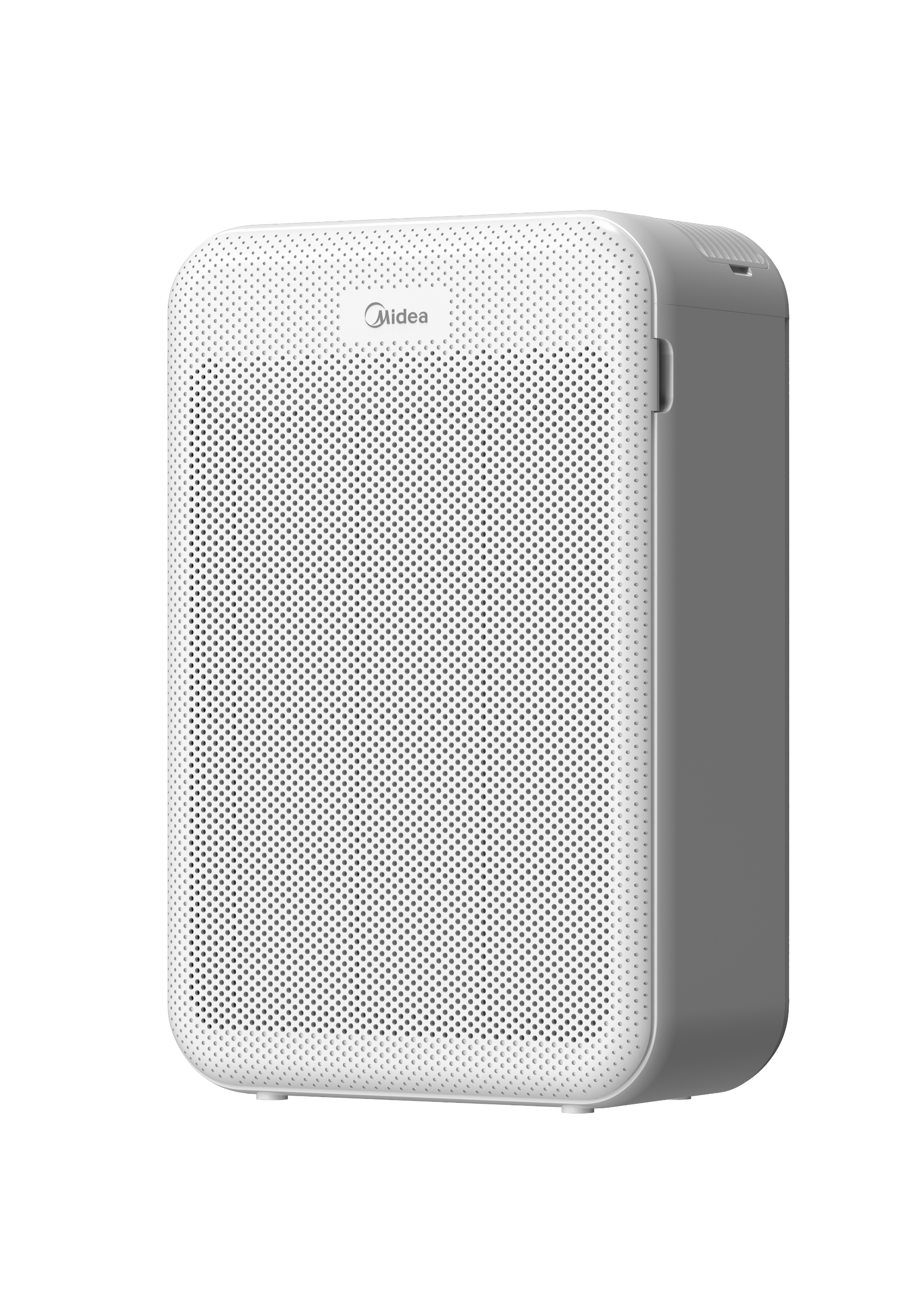

Air Purifier
Model number: MAP-28BD
  • Compact Design

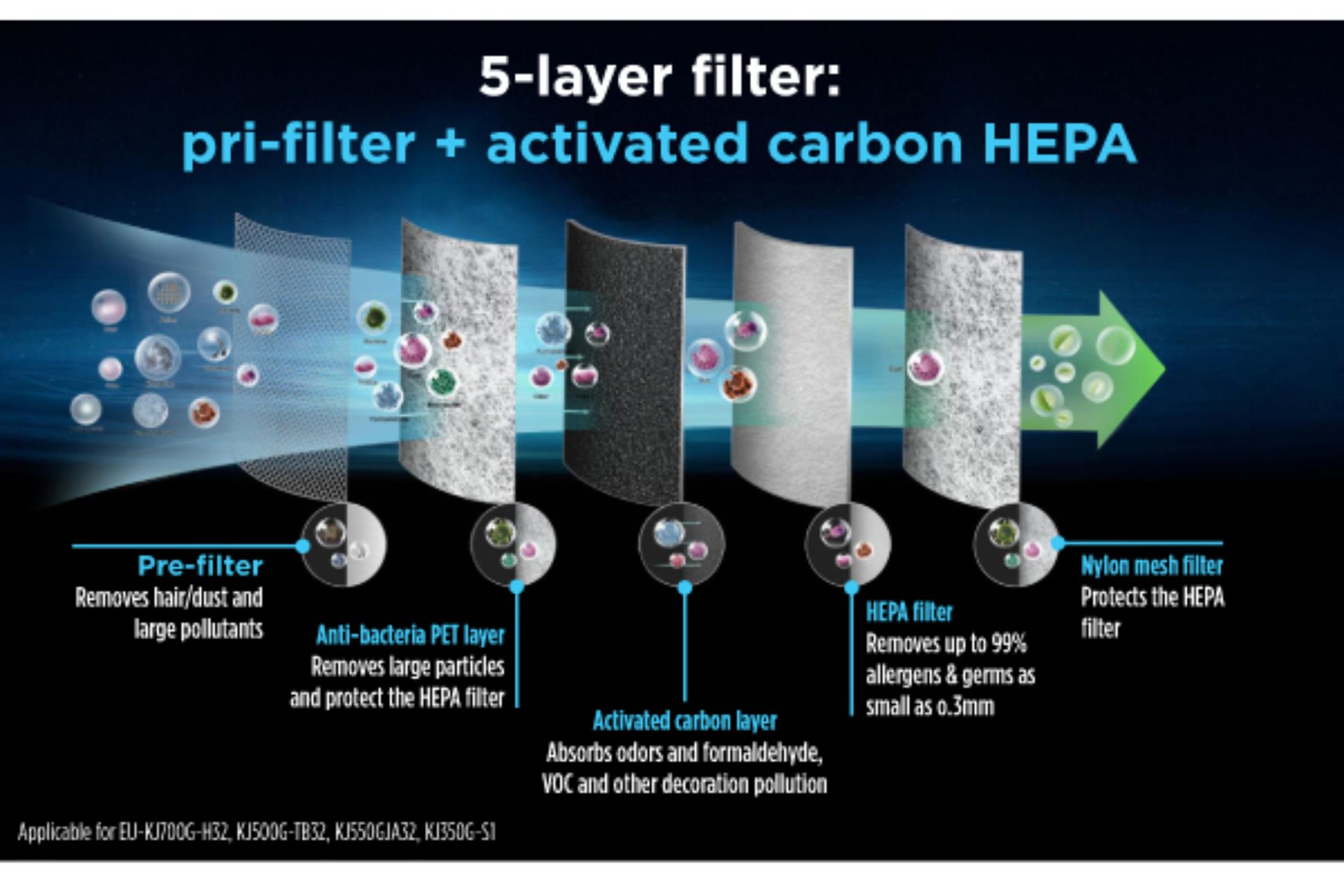

  • 5 Layer of Filter Purification
