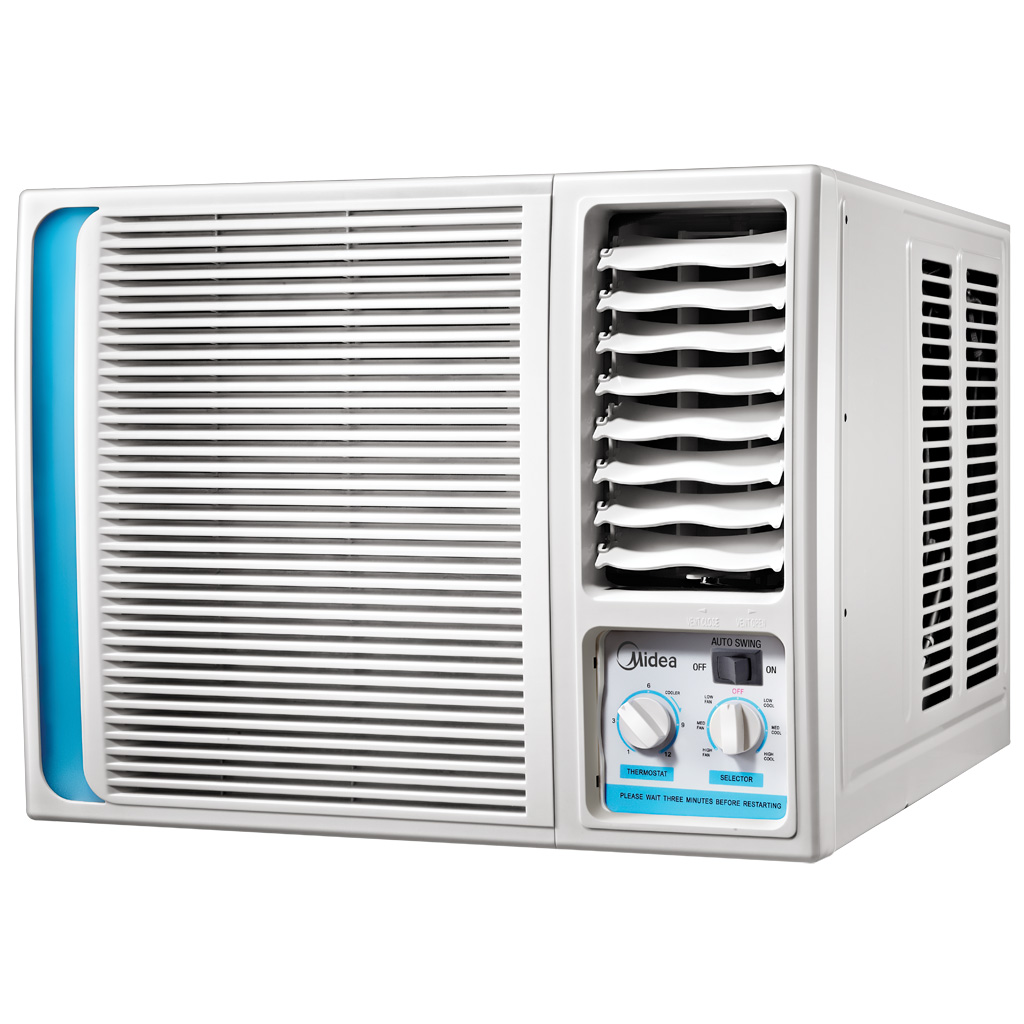

window-air-conditioner
.jpg)
Features
Specifications
-
2.5hp
Cooling Capacity
-
250-370sq.ft
Application Area
Full specifications
-
Performance
-
Power Supply (V-Ph-Hz)220-240V~ /1/50
-
Cooling Capacity (Btu h)24000
-
Power Consumption (W)2300
-
Running Current (A)10.5
-
EER (Btu h w)10.43
-
-
IDU Performance
-
Indoor Side air flow (cubic meter h )770/670
-
Indoor Side air flow (cfm)453/394
-
Indoor Side sound level (dB(A))58/52
-
-
ODU Performance
-
Outdoor Side sound level (dB(A))62/56
-
-
Specification
-
Refrigerant charge type volume (kg)R410A/1.15
-
Design pressure (MPa)4.2/1.5
-
Control typeMechanical control
-
Dimension Width (mm)660
-
Dimension Depth (mm)780.0
-
Dimension Height (mm)428.0
-
Machine Net weight (kg)65.0
-
Manuals
You May Also Like
1.0HP Window Air Cond
Model number: MWF-09CMN1
- Self Evaporative System
- Fresh Air
- Auto Defrosting
- Timer
- Easy Cleaning Panel
- Auto Swing (Horizontal)
1.5HP Window Air Cond
Model number: MWF-12CMN1
- Self Evaporative System
- Fresh Air
- Auto Defrosting
- Timer
- Easy Cleaning Panel
- Auto Swing (Horizontal)
2.0HP Window Air Cond
Model number: MWF-18CMN1
- Self Evaporative System
- Fresh Air
- Auto Defrosting
- Timer
- Easy Cleaning Panel
- Auto Swing (Horizontal)
-
