BreezelessE

BreezelessE 09

The latest intelligent algorithm can proactively detect changing factors in the environment every 30 seconds and adjust the temperature for additional energy savings of up to 20%.
5013 minuscule holes with hourglass structures ensure a gentle cooling of the air 6,3°C within 10 minutes.¹
Heats immediately in cold weather to -2 °C. Heat the air to 10,4°C within 10 minutes. ²

EU Data Sheet

Energy-saving, intelligent comfort

Thanks to the intelligent learning algorithm, the BreezelessE enables energy savings while providing maximum comfort. Air Magic+ sterilization ensures a healthy room climate.

Energy Saving Report

High-precision energy detection technology can detect energy consumption, identify the causes of high energy consumption and suggest individual energy saving tips via the Midea SmartHome app.

Intelligent learning algorithm for extra energy savings

Midea BreezelessE can intelligently predict and perform the most efficient way of air conditioning. This enables operation with additional energy savings of up to 20% for energy-efficient comfort.

Smart Sleep Curve

The Midea BreezelessE can automatically adjust the temperature during sleep to the advanced settings in the SmartHome app, to ensure a pleasant climate during the night.

Cool Flash Plus

Midea Cool Flash Plus technology can instantly cool the entire room. Thanks to the large air volume and long air flow, the temperature of the entire room can be reduced by 6.3 °C in 10 minutes¹.

Breezeless technology

The Twinflap ™ -Structure with 5013 mini holes can convert the strong airflow into thousands of tiny air threads for particularly gentle cooling

Heat Flash

Thanks to the fast and strong flow of hot air, Heat Flash technology can heat the entire room in a short time. Room temperature can rise by 10.4°C within 10 minutes. ²

Air Magic+

Negative ions inhibit activity and kill bacteria such as Escherichia coli, Staphylococcus aureus and H1N1.

i-Clean

The 4-stage self-cleaning technology with a temperature of up to 56 °C thoroughly cleans the evaporator in the air conditioner and ensures clean and fresh air.

Over-The-Air-Technologie

OTA technology enables the air conditioning to be updated via wireless transmission of the new software. This allows the Midea BreezelessE to continuously perform product updates, functional optimizations and preventive maintenance measures.

All Specifications

Product

Model BreezlessE
Model Number MSCB1BU-09HRFN8-ME/MOX103-09HFN8-ME

Specifications

Cooling Capacity 2,79 (1,02-3,52) kW
Heating performance 2,93 (1,02-3,81) kW
Power consumption Cooling [W] 776(80~1300)
Power consumption Heaters [W] 696(100~1250)
Operating current (cooling) [A] 5.6(0.58~5.65)

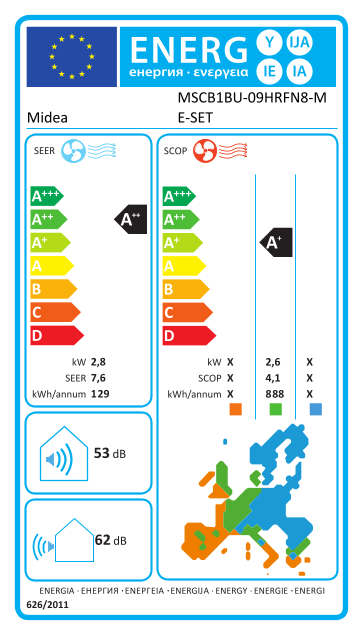

SEER 7,6 / A++
SCOP 4,1 / A+
Air volume inside unit [m³/h] 375/415/510
Sound pressure level [dB(A)] 19,5/20,5/32,0/37,0
Dimensions WxWxH [mm] 812x199x299
Dimensions External unit (W x W x H) [mm] 720x270x495
Weight [kg] Internal unit 9,1
Weight [kg] External unit 22,7
Voltage supply (V/Ph/Hz) 230/1/50
Pipeline connections Liquidsl. [mm (inch)] 6,35 (1/4)
Pipe connections Suction pipe [mm (inch)] 9,52 (3/8)
Condensate [mm (AD)] 16
Refrigerant R32
External unit cooling [°C] -15 / 50
External heating unit [°C] -20 / 24

Expand all specs
