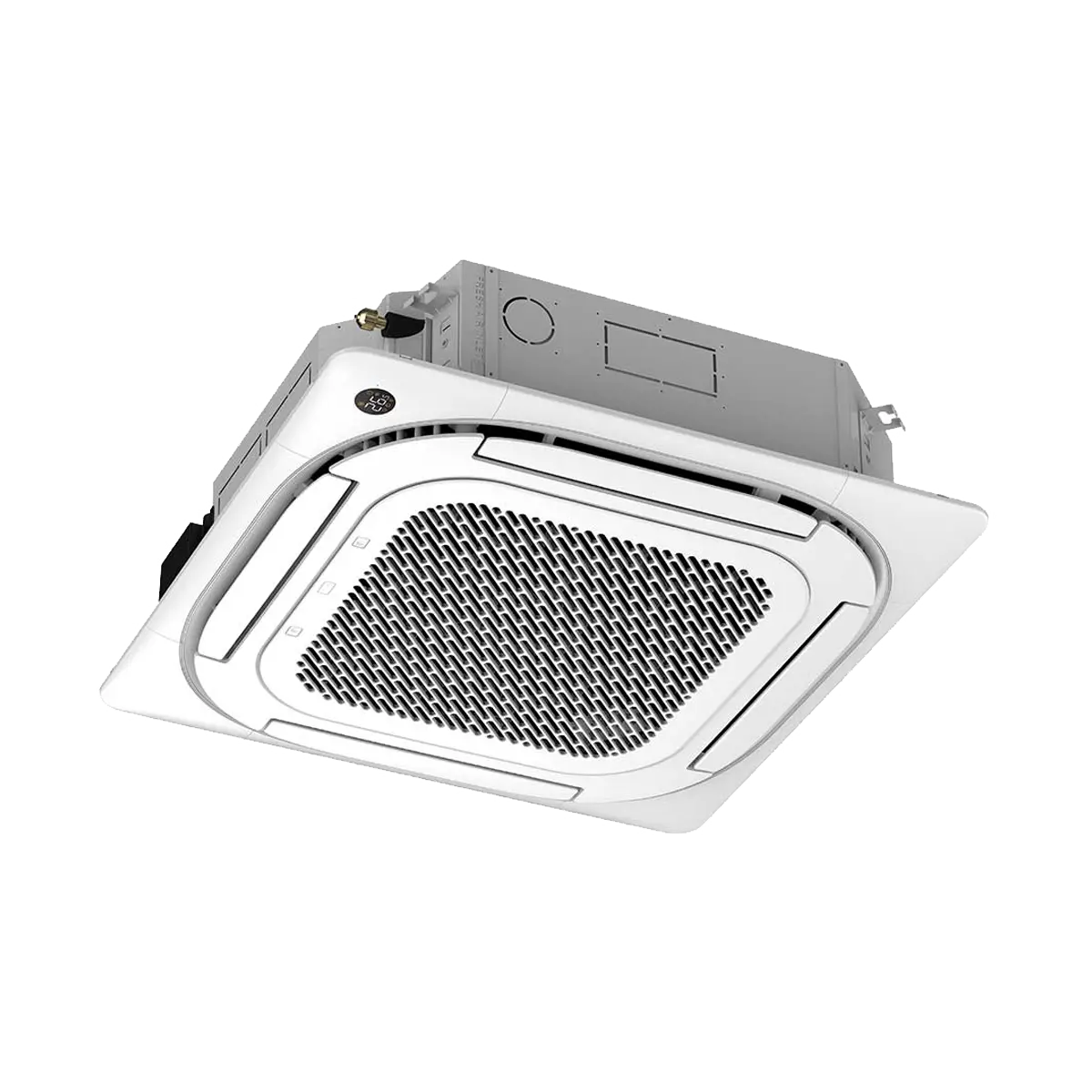

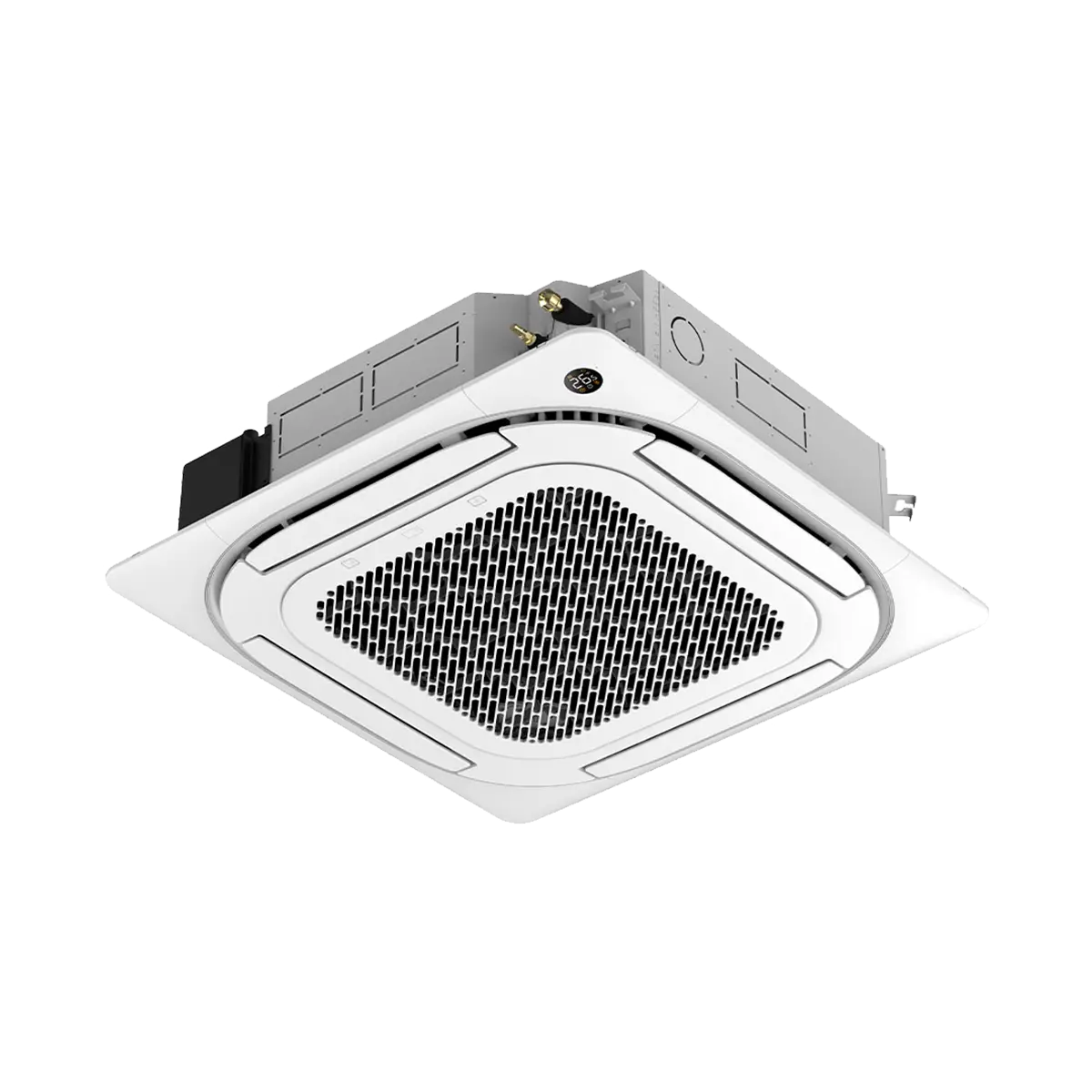

4-way ceiling cassette

MCD1-48FNXD0-ME

Smart Control thanks to connection with the Midea SmartHome app
Timer for convenient and customized settings
High installation flexibility and easy maintenance

EU Data Sheet

Wi-Fi enabled

Timer

Easy installation & maintenance

Comfort

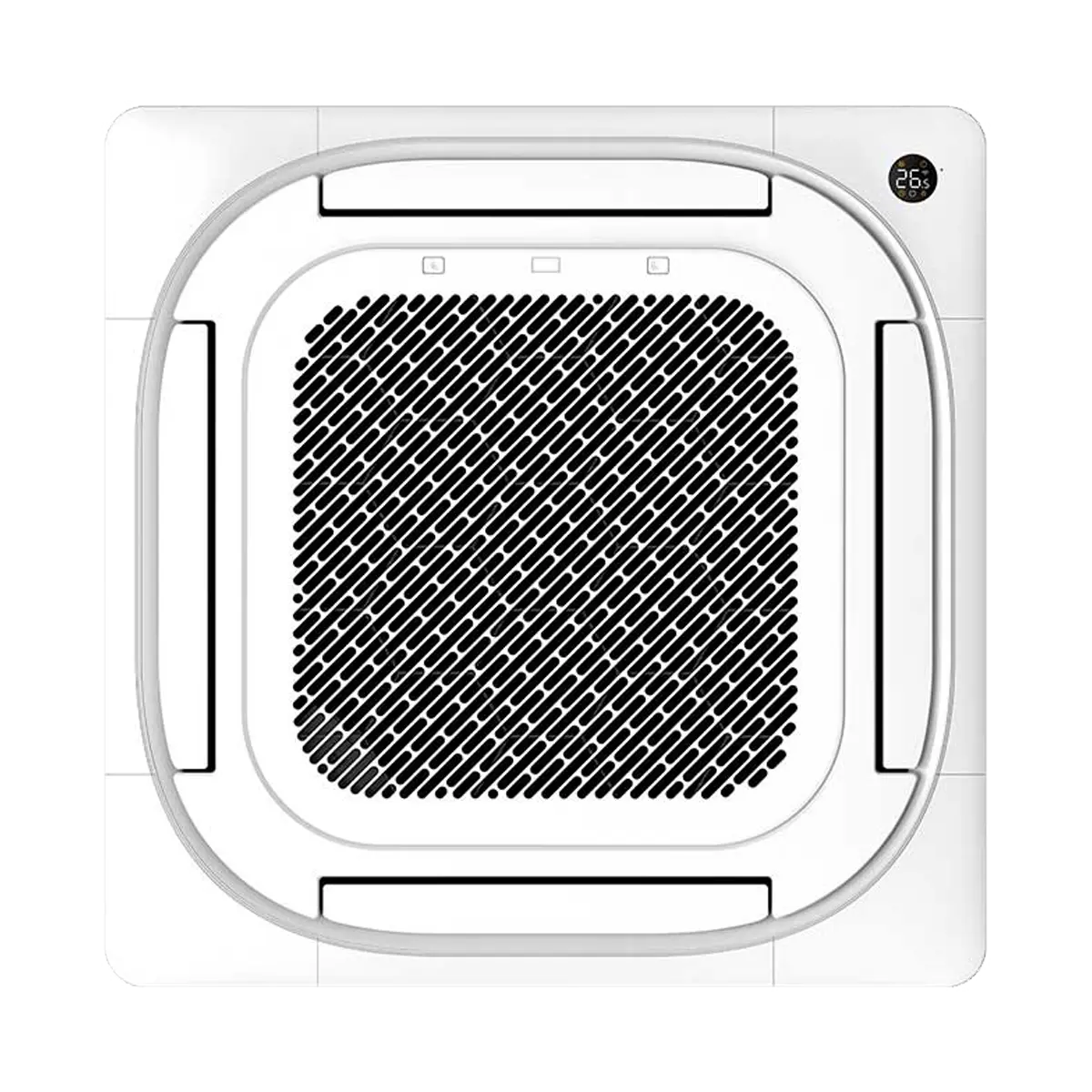

Our innovative air technology ensures maximum comfort with an even, gentle airflow providing refreshing coolness without unpleasant drafts. The 360° air outlet creates a pleasant atmosphere, even in large rooms.

Thanks to individual louver control, up to four cooling modes can be set to adjust the airflow to personal preferences. The flexible twin system enables efficient air distribution in complex room layouts by combining and optimally controlling two indoor units with a single outdoor unit.

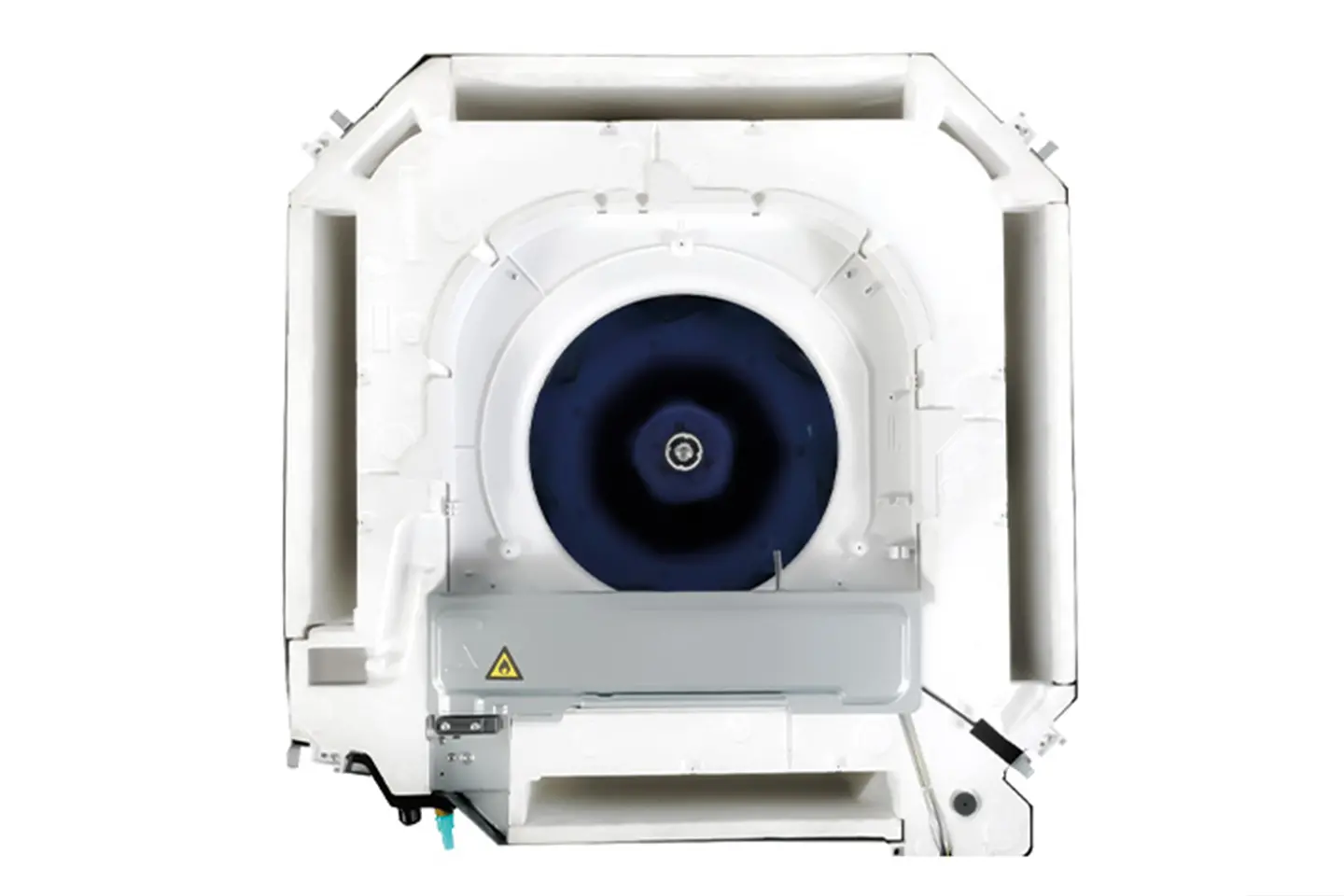

Reliability

The optimized drain pan made of high-quality, corrosion-resistant ABS plastic features an increased material thickness of 2.2 mm, ensuring outstanding stability and durability. The redesigned structure guarantees even more efficient drainage and provides reliable protection against damage. In addition, the reinforced 1.4 mm ABS molding significantly boosts pan resistance to sustainably prevent corrosion and wear.

Save energy

The innovative ECO mode technology of the 4-way ceiling cassette ensures optimal comfort while reducing operating energy consumption depending on usage. In ECO mode, energy consumption over 8 hours is just 1.36 kWh per night, resulting in a significant reduction in operating costs depending on usage and operating conditions.

An integrated sensor automatically detects the presence of people in the room and adjusts operation accordingly, optimizing energy use based on occupancy.

Thanks to millimeter-wave radar technology, cooling is tailored individually, creating a comfortable and energy-efficient indoor climate.

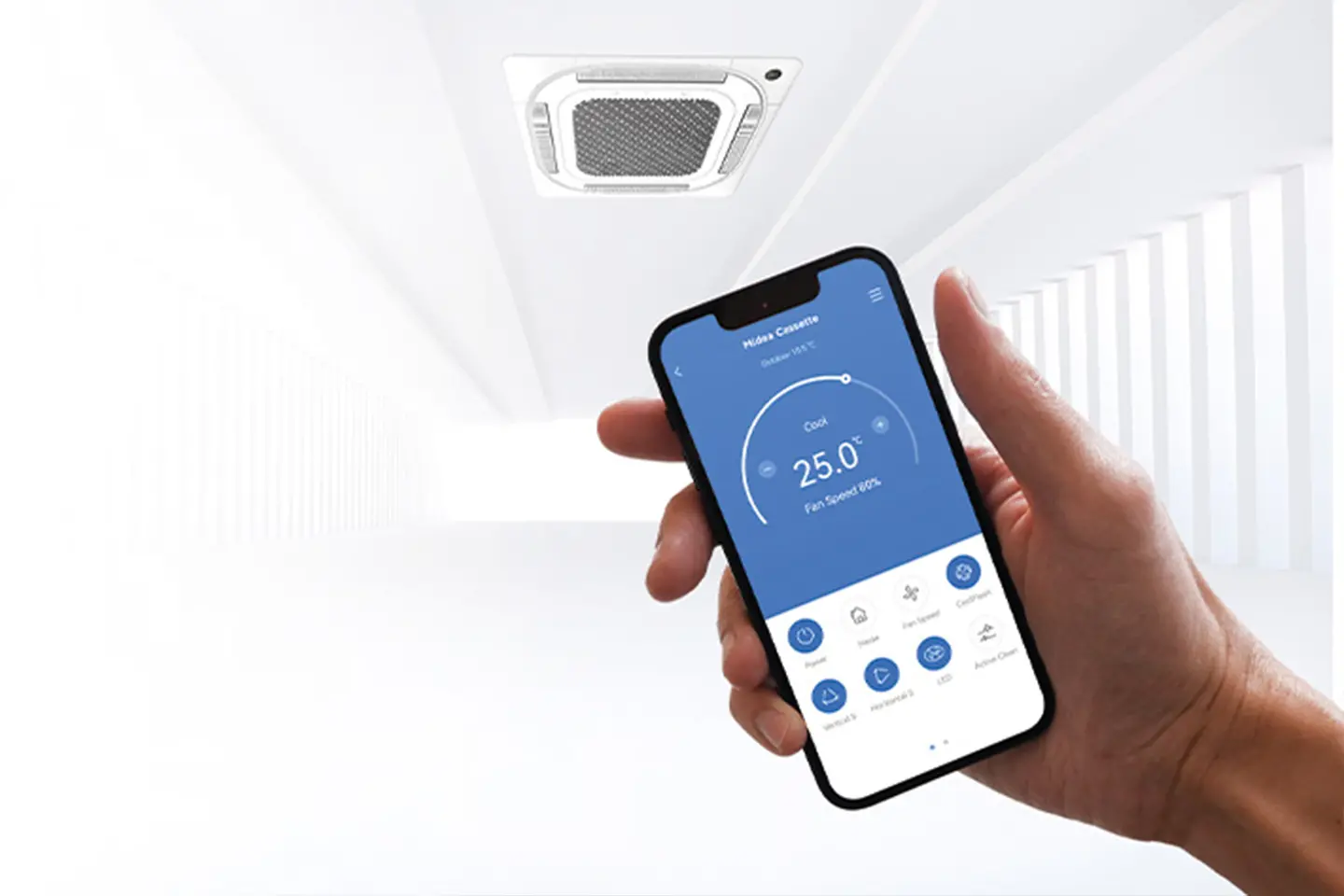

Optimized remote connectivity and building management

Optimized Wi-Fi module design

The new Wi-Fi module and connecting cable are integrated directly into the 4-way ceiling cassette, significantly cutting down on installation steps. No extra accessories are required, leading to cost savings, simpler installation, and a cleaner overall appearance.

Building Management System

BMS integration enables centralized control of lighting, security systems, and automated alarm systems. This simplifies administration and optimizes the overall operation of the building.

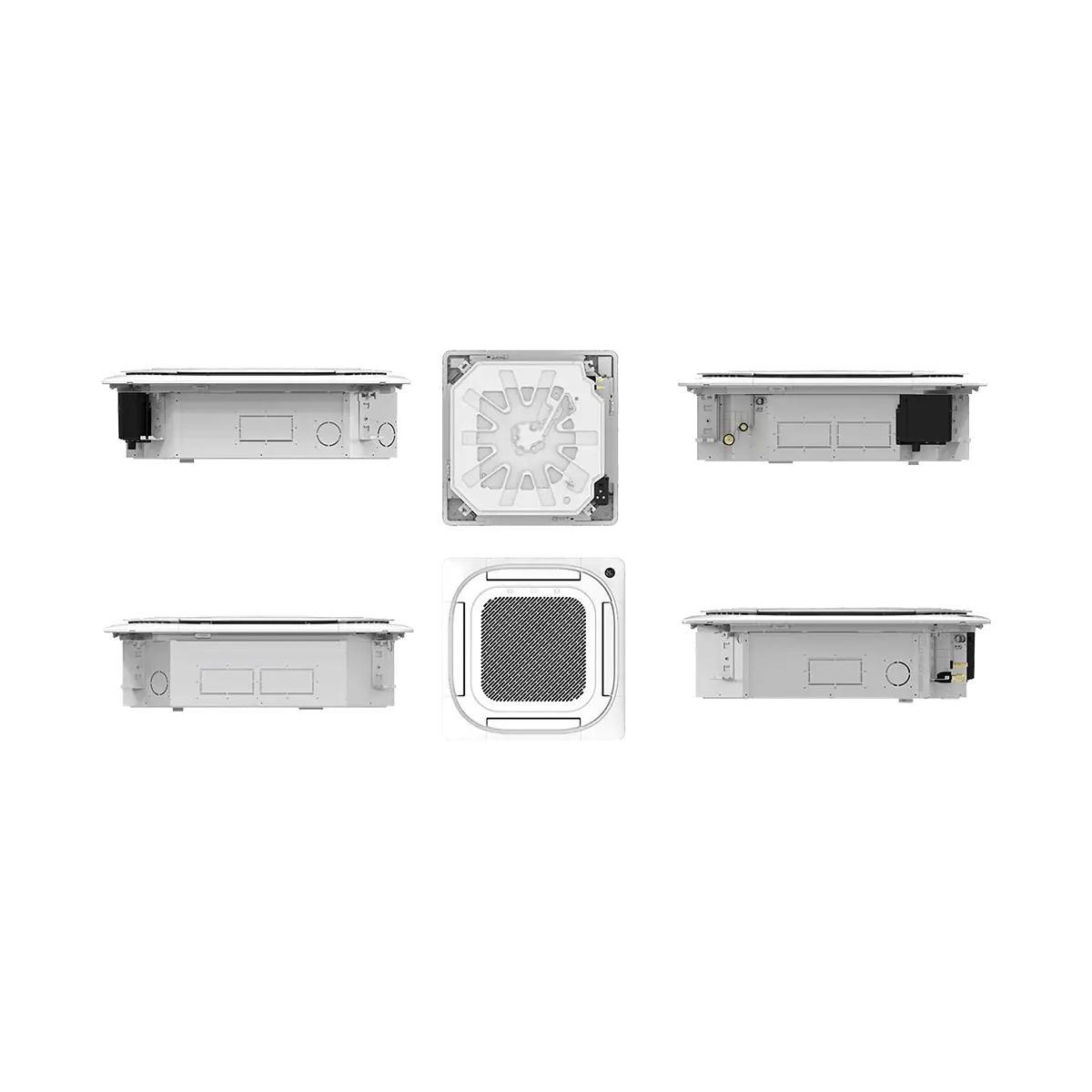

Easy installation and maintenance

User-friendly hook design

The ergonomically shaped, curved metal hook minimizes the risk of hand injuries. The expanded space for piping prevents interference from installation tools and enables seamless pipe connections.

Expanded space for piping

The additional 12 mm clearance makes manual work significantly easier.

Time savings during water pump maintenance

Thanks to the innovative WindTrack design, the water pump is located outside the unit, greatly simplifying pump access. Simply remove the cover without having to disassemble the drain pan

Specifications

Product

Model 4-way ceiling cassette
Model Number MCD1-48FNXD0-ME

Specification

Power input cooling [W] 4650 (800-5900)
Power input heating [W] 4580 (900-5500)
Operating current (cooling) [A] 8,1 (1,8-10,2）
Indoor unit air flow [m³/h] 1580/1780/1970
Sound pressure level [dB(A)] 46,5/48,5/51,0
Outdoor unit dimensions (W x D x H) [mm] 952x415x1333
Dimensions WxDxH [mm] indoor unit 830x830x287
Weight [kg] indoor unit 29.3
Weight [kg] outdoor unit 80,5
Piping connections liquid line [mm (inch)] 9,52 (3/8)
Piping connections suction line [mm (inch)] 15,9 (5/8)
Piping connections condensate [mm (OD)] 25
Operating limit outdoor unit cooling [°C] -0.3
Operating limit outdoor unit heating [°C] -0.625

Expand all specs
