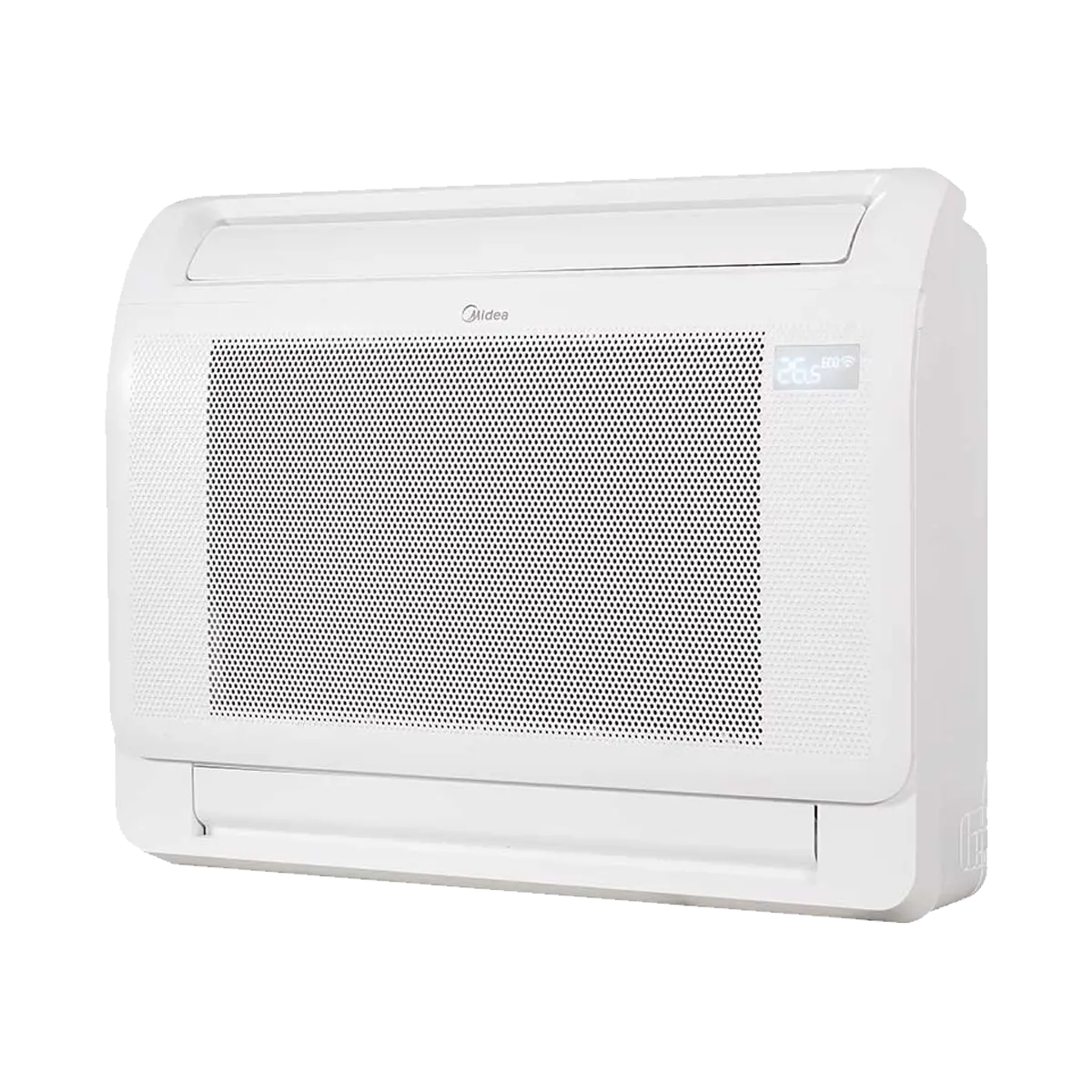

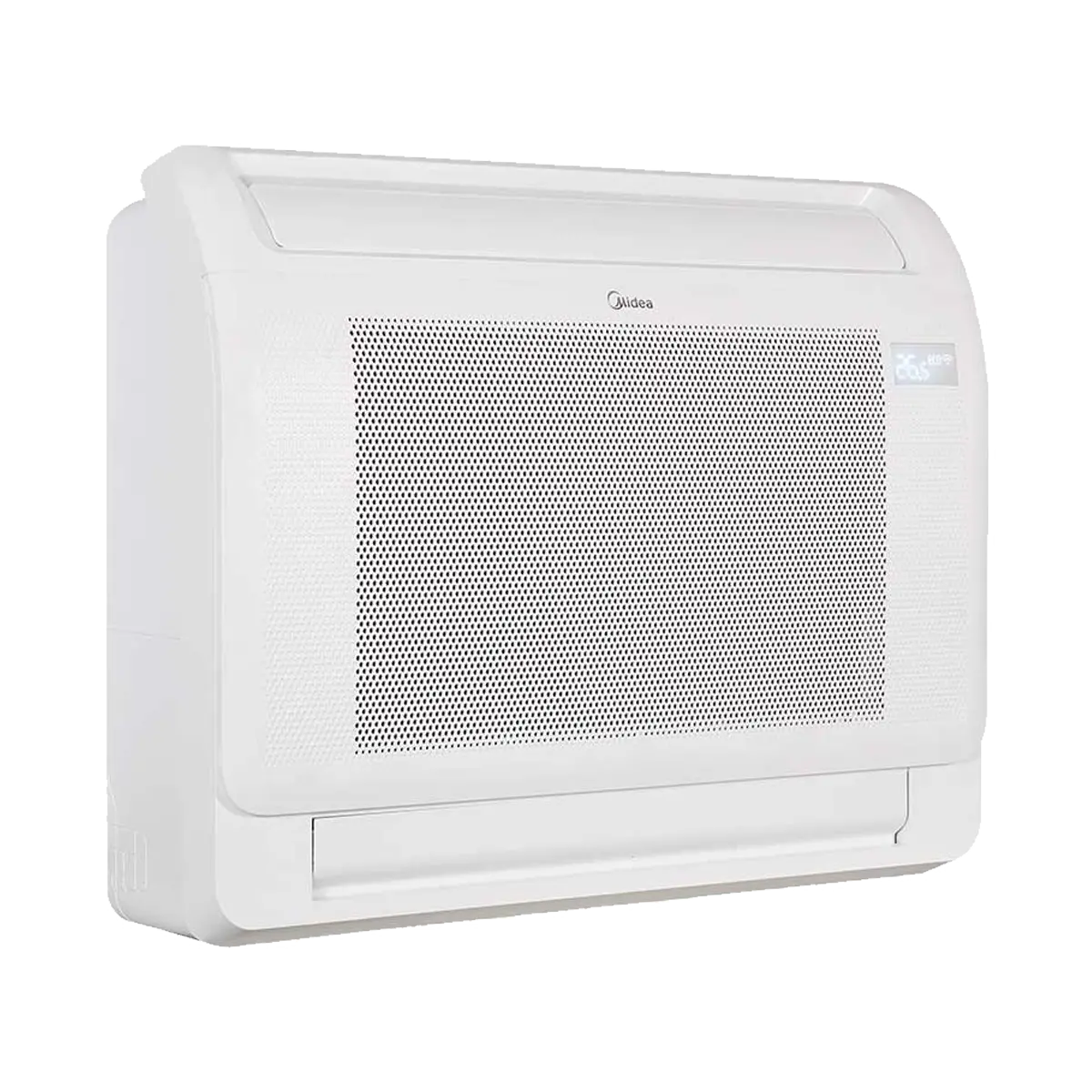

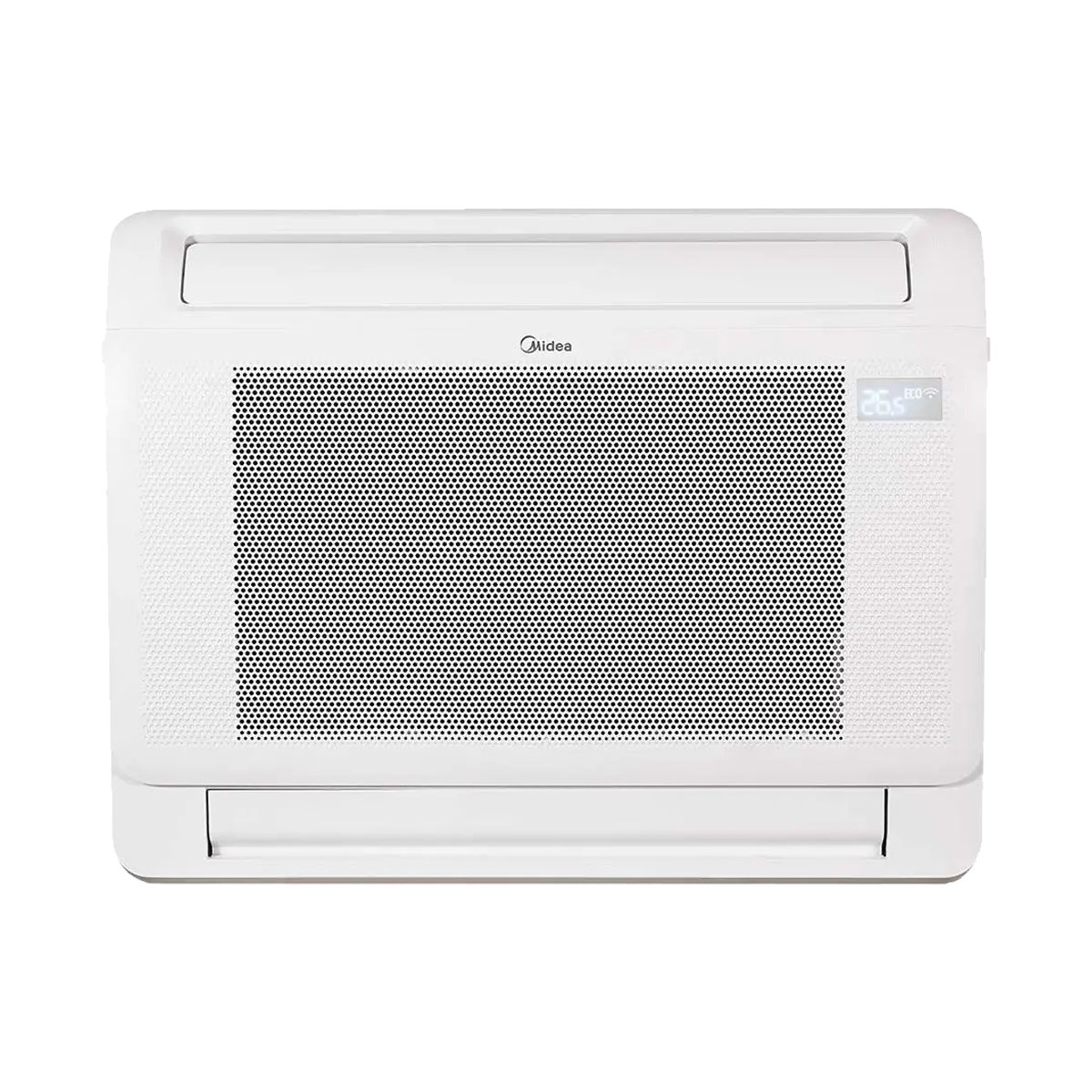

Console Air Conditioner

MFA2U-12HRFNX-ME

Smart control thanks to connection with the Midea SmartHome app
Timer for convenient and personalized scheduling
High installation flexibility and easy maintenance

EU Data Sheet

Wi-Fi enabled

Timer

Easy installation & maintenance

Elegance

The design of the new, enhanced Midea console unit stands out with flowing lines and an appealing aesthetic

Unobtrusive

The discreet design blends effortlessly into diverse interior styles

Compact

The unit's width has been reduced by 10 mm, taking up even less wall space.

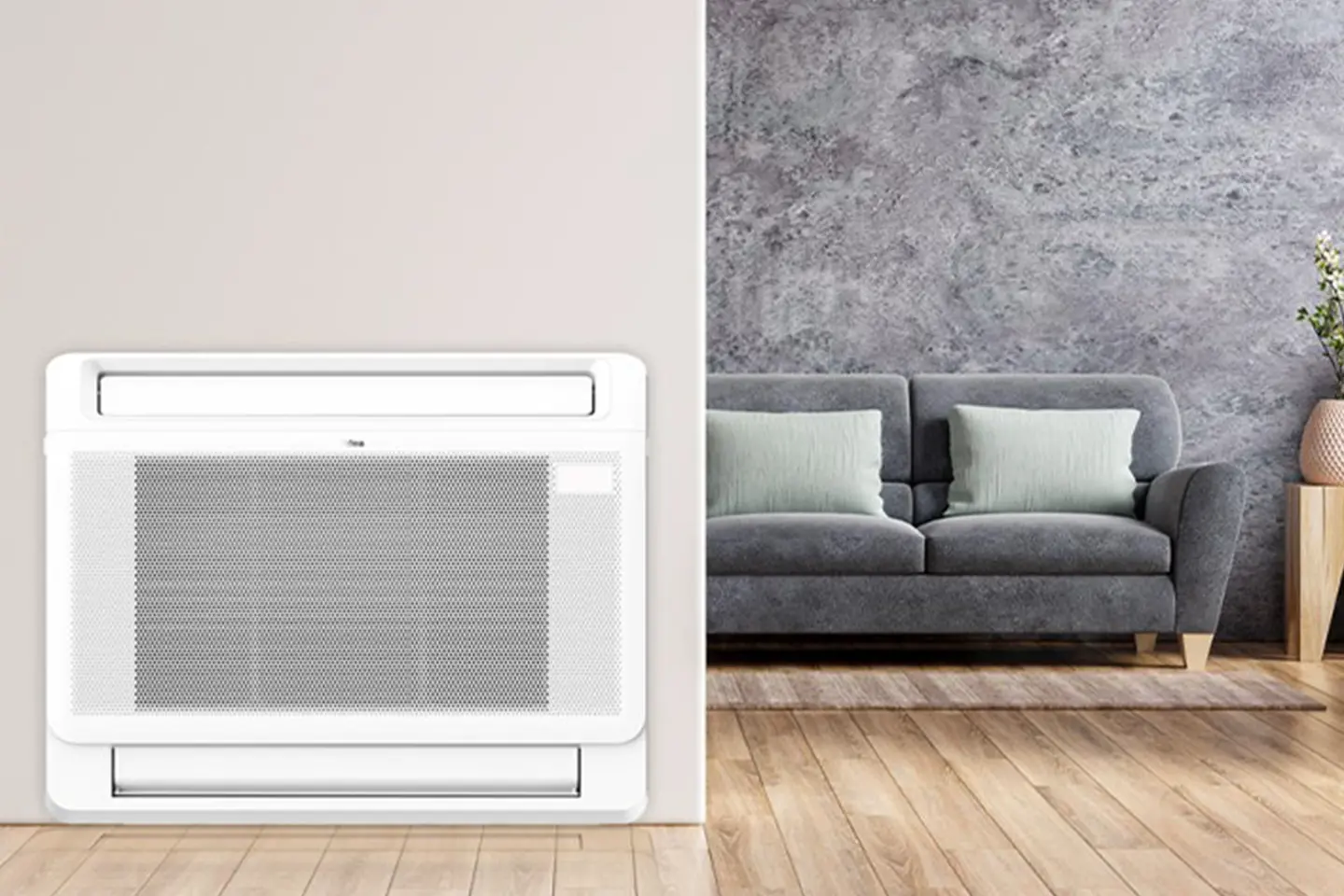

Ideal for new builds and renovations

The Midea console unit can be flexibly installed standing on the floor or mounted on the wall. It serves as an excellent alternative to conventional radiators, saving space while offering advanced climate control features.

Comfort

Efficient cooling and heating performance

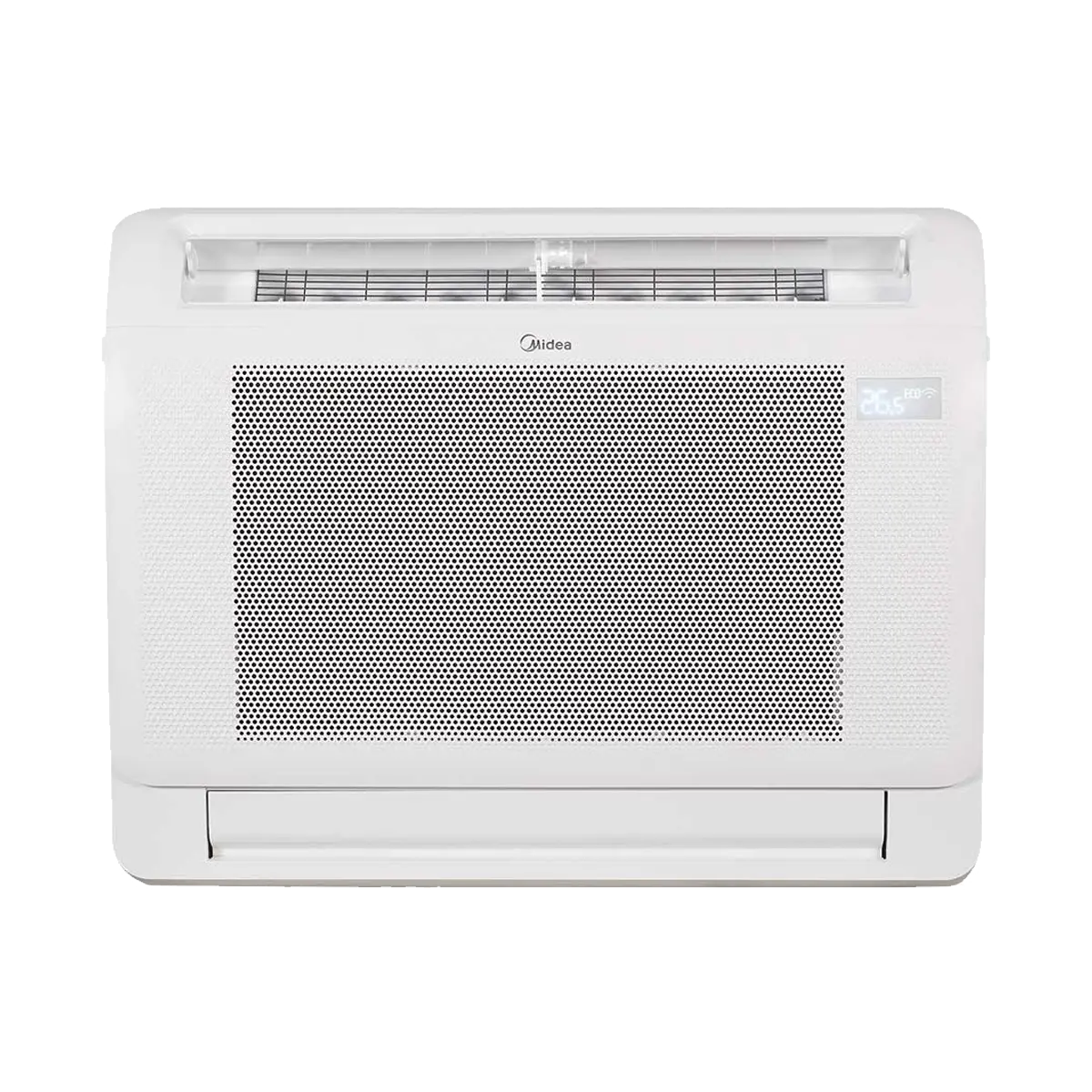

Dual generous air outlets increase air volume to provide uniform and stable temperature distribution.

Whisper-quiet operation

A specially optimized fan maximizes energy efficiency while lowering operating sound levels by 3 dB.

Enhanced air quality

Smart humidity regulation and an integrated ion generator actively care for your health and comfort.

Quiet operation

Specially optimized fan delivers high energy efficiency with an ultra-low noise level of just 20.9 dB(A).

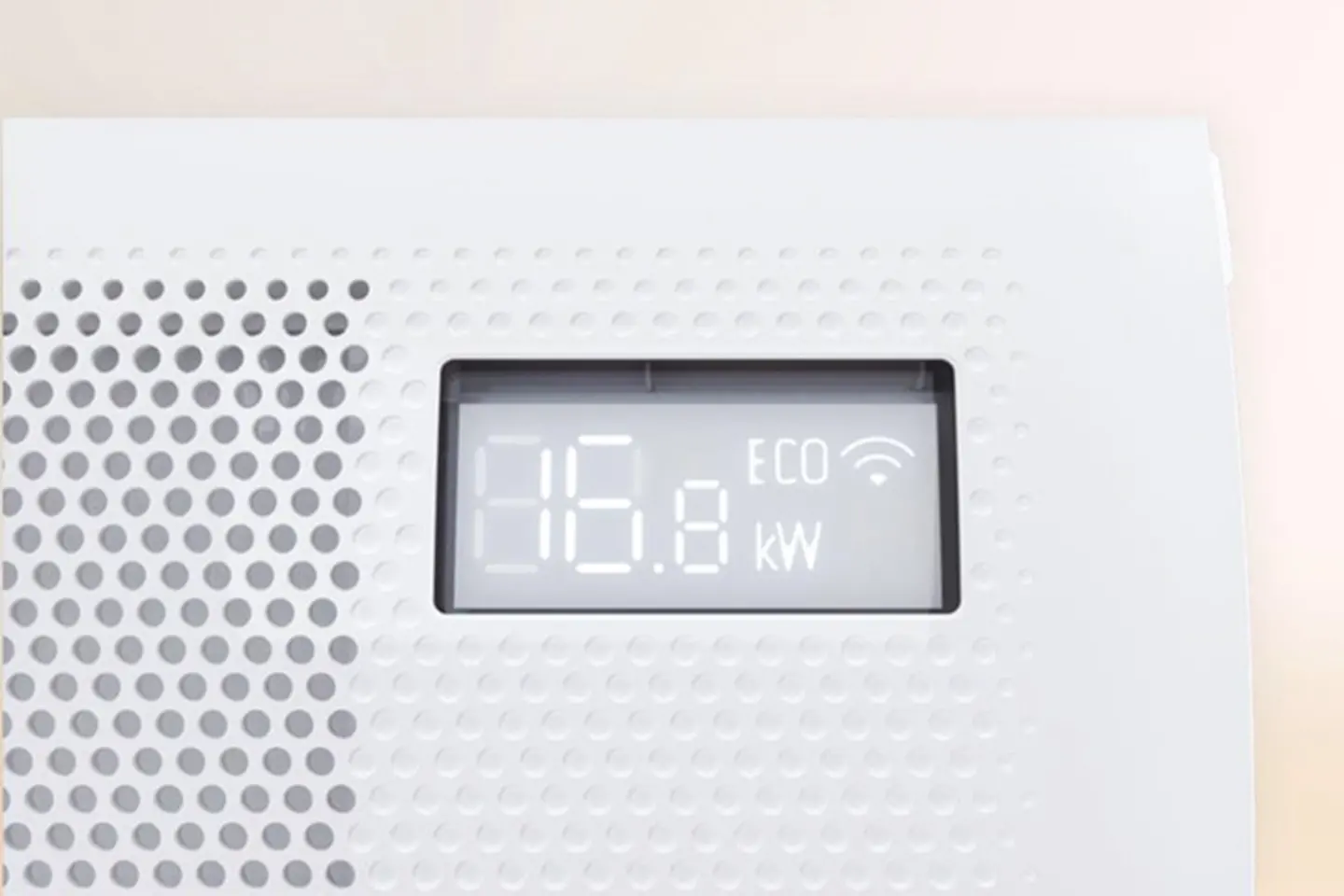

Optimal humidity

Efficiently dehumidifies indoor air to maintain a comfortable, optimal humidity level. The front display provides clear, user-friendly operation.

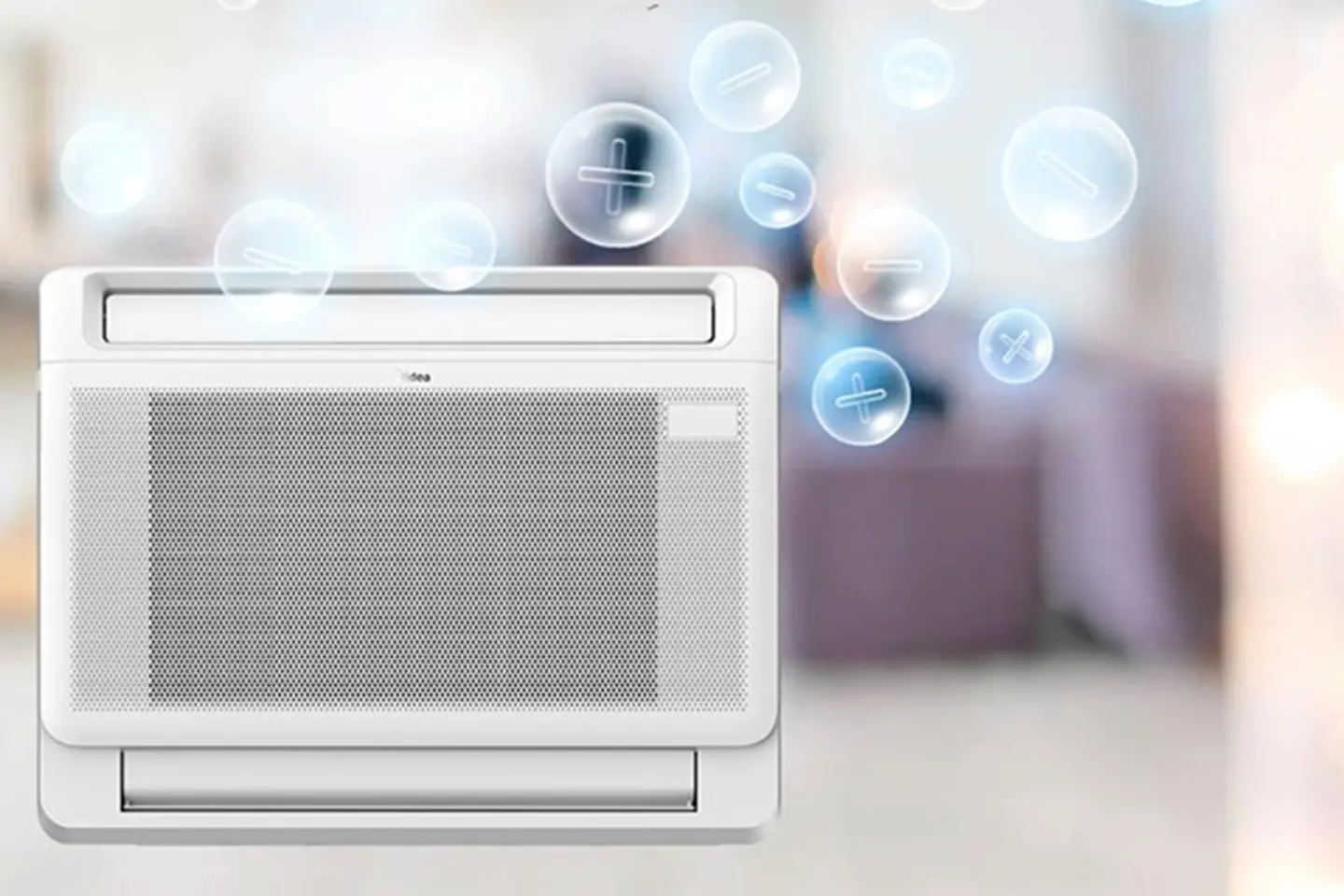

Improved air quality

An integrated bipolar ion generator produces powerful ions that bind to airborne pollutants and neutralize them—creating a cleaner and healthier indoor environment.

Optimal compatibility

Connection options for the console unit can be expanded for various applications and setups—thanks to multi-split connectivity via Midea outdoor units.

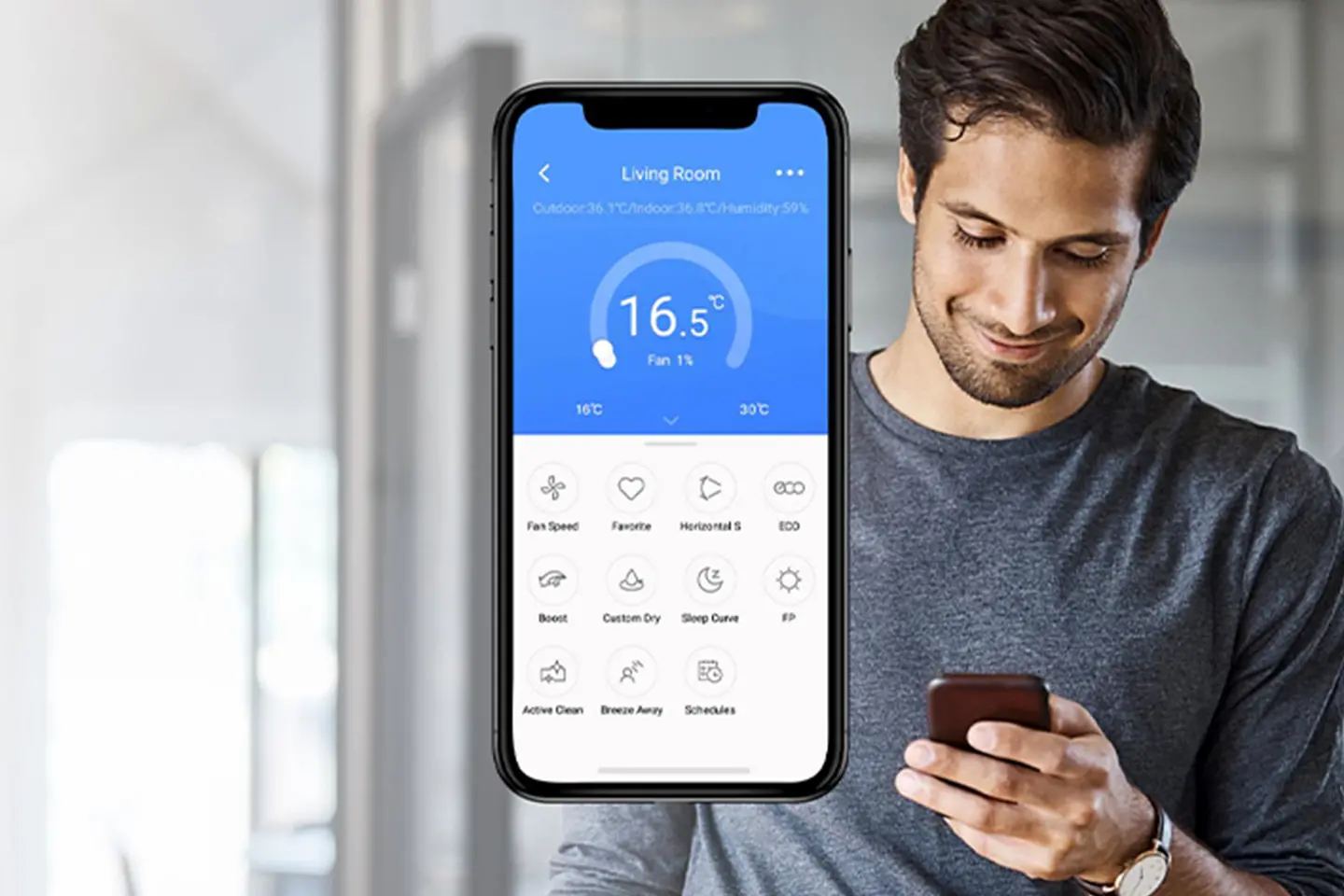

App control

The Midea SmartHome app allows you to control the console unit anytime and virtually anywhere.

Easy installation and maintenance

Optimized design for greater freedom:

The redesigned mounting plate ensures flexible installation.

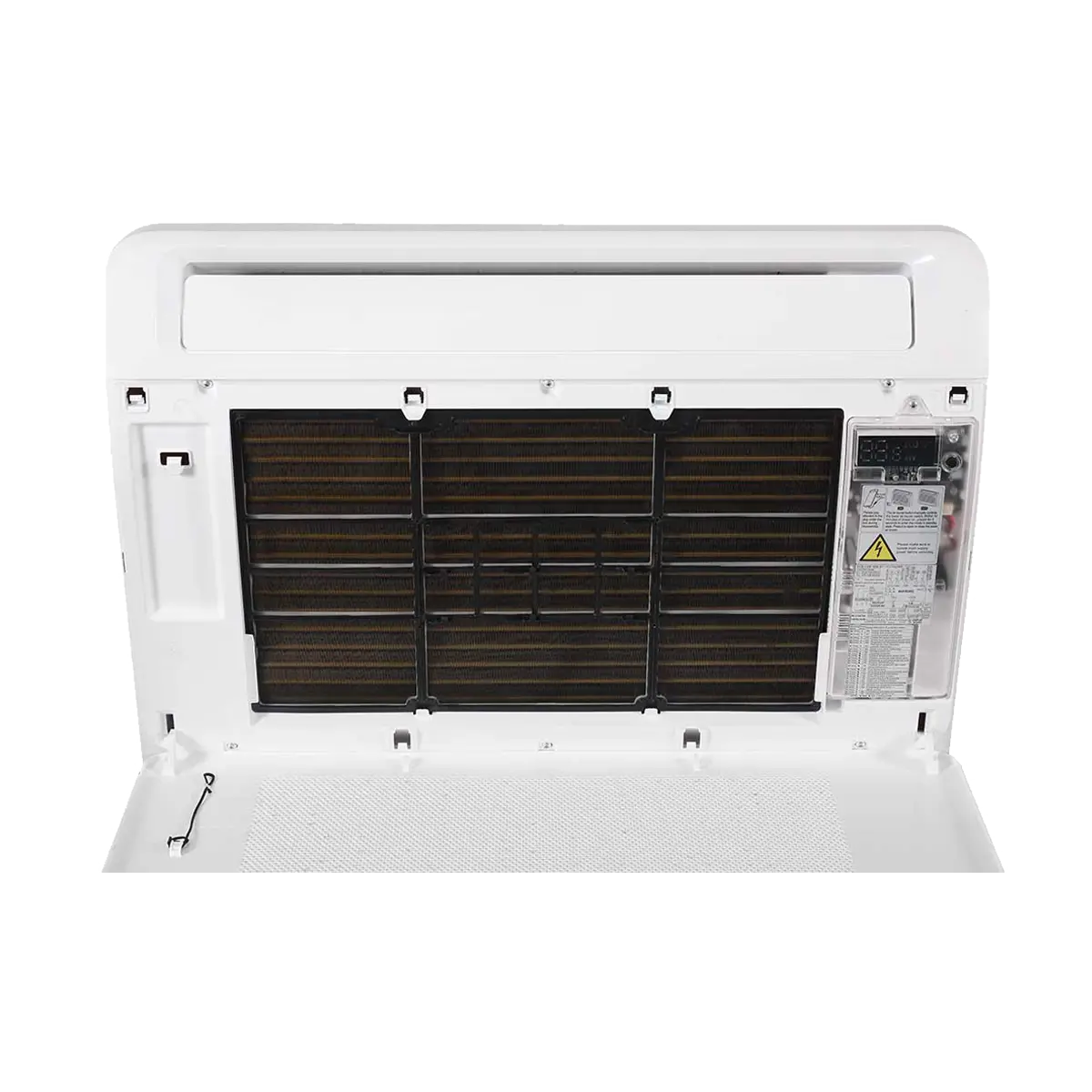

The removable front panel contains no electrical components, making it safe and easy to take off and wash. The air filter can also be removed and cleaned effortlessly by the user.

Specifications

Product

Model Console Air Conditioner
Model Number MFA2U-12HRFNX-ME; MOX230-12HFN8-ME

Specification

Power input cooling [W] 1020 (170~1350)
Power input heating [W] 980 (150~1300)
Nominal voltage [V] 350
Operating current (cooling) [A] 4,43 (1,25~5,90)
Airflow rate indoor unit [m³/h] 490/580/650
Sound pressure level [dB(A)] 27/34/37
Outdoor unit dimensions (W x D x H) [mm] 700 × 210 × 600
Indoor unit dimensions (W x D x H) [mm] 794 × 200 × 621
Net weight indoor unit [kg] 14.9
Net weight outdoor unit [kg] 26.6
Refrigerant piping liquid pipe [mm (inch)] 6.35 (1/4")
Refrigerant piping gas/suction pipe [mm (inch)] 9,52 (3/8)
Condensate drain connection [mm (OD)] 16
Operating limits outdoor unit cooling [°C] -15 to 50
Operating limits outdoor unit heating [°C] -15 to 24

Expand all specs
