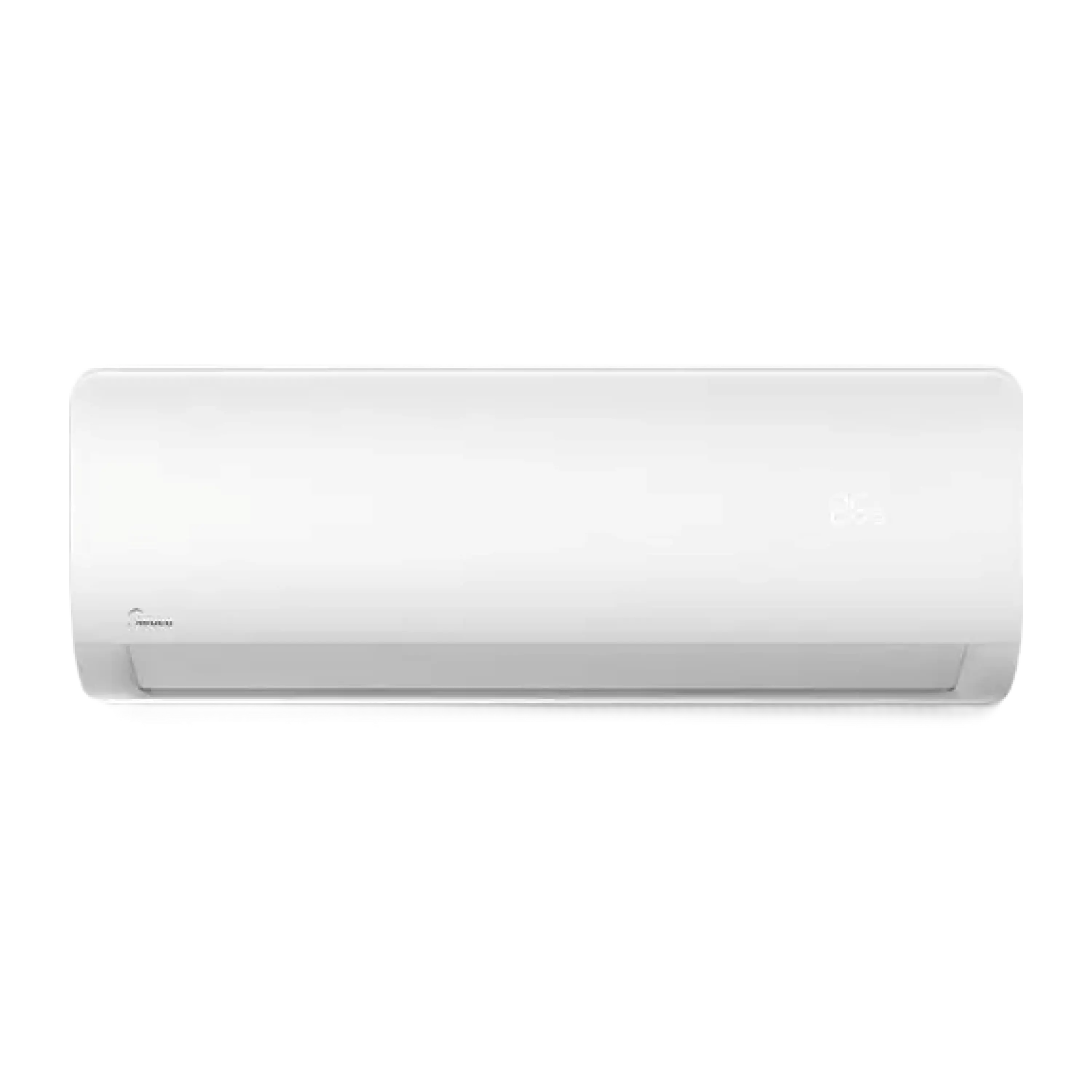

Xtreme Inverter R32 Energy Saving Inverter Aircon - 22000 BTU
INVEXT-24-R32
Eco-friendly R32 Gas
Cooling and Heating.
WIFI Enabled – Included
Energy Saving.
Fire Proof Electrical Box.
WIFI Control
ECO Mode
An Aircon Xtreme on Comfort
Whether you’re looking for aircon for the home or office, the new Midea air conditioner eliminates the line between good weather and bad. A host of comfort-related features including Turbo for rapid results, Do Not Disturb for a peaceful night’s sleep, Anti Cold-Air Function and Auto Restart ensure that you’ll enjoy perfect temperatures all year round.
Xtreme Energy Saving
Midea’s Xtreme Air Conditioner saves you energy and stretches your wallet by maximising the unit’s efficiency and cutting down on power usage. Intelligent on-off technology enables the Midea Xtreme to automatically enter energy-saving mode when on standby, reducing energy consumption by 80%. Home aircon has never been a better investment.
Sleep Mode – Cool
Sleep Mode – HeatFull specifications
General Features
- Power supply 220-240V,IPh,FREQUENCY-50HZ
- Max.input consumption /
- Max.current /
- Starting current /
- Indoor air flow(Hi/Mi/Lo) 1170/950/810 m3/h
- Indoor Air Flow 2500 m3/h
- Indoor noise level (Hi/Mi/Lo) 45.0/40.5/30.5 dB(A)
- Indoor Noise Level 59,5 dB(A)
- Outdoor air flow /
- Outdoor noise level /
- Refrigerant Type /
- Design pressure /
- Connection wiring 1.5X4
- Plug Type /
- Thermostat type /
- Operation temperature 17-30℃
- Application area(Cooling Standard) 29-43m2
- Qty per 20'/ 40'/ 40'HQ /
- Code /
- Indoor code /
- outdoor code /
- Outdoor INVERT-24X-R32
- Indoor INVERT-24-R32
- Indoor Dimensions /
- Outdoor Dimensions /
- Rated Power Input 2850w
- Rated Curren Input 13,5A
- Starting current(Approximate) 0,8A
- Compressor Type ROTARY
- Refigerant type R32/1.25 Kg
- Power Point Type plug
Cooling
- Capacity 7000w/23890Btu\h
- Input 2220w
- Rated Current 9,65A
- EER 3.2w/w
Heating
- Capacity 7000w/23890Btu\h
- Input 1901w
- Rated Current 8A
- COP 3,70w/w
Compressor
- Model /
- Type /
- Brand /
- Capacity /
- Input /
- Rated current(RLA) /
- Locked rotor Amp(LRA) /
- Thermal protector /
- Thermal protector position /
- Capacitor /
- Refrigerant oil/oil charge /
Indoor fan motor
Indoor coil
- a.Number of rows /
- b.Tube pitch(a)x row pitch(b) /
- C.Fin spacing /
- d.Fin type(code) /
- e.Tube outside dia.and type /
- f.Coil lengthx height x width /
- g.Number of circuits /
Indoor unit
- Dimension(W*D'H) 1082×234×337 mm
- Packing (W*D'H) 155×415×315 mm
- Net/Gross weight 14.1/17.8 Kg
- Coil Type Hydrophilic aluminum
Outdoor fan motor
Outdoor coil
- a.Number of rows /
- b.Tube pitch(a)x row pitch(b) /
- C.Fin spacing /
- d.Fin type(code) /
- e.Tube outside diaand type /
- g.Number of circuits /
Outdoor unit
- Dimension(W"D'H) 805×330×554 mm
- Packing(W"D'H) 915×370×615 mm
- Net/Gross weight 33/35.6 Kg
- Coil Type Hydrophilic aluminum
Refrigerant piping
- Liquid side/Gas side 9.52mm(3/8in)/15.9mm(5/Bin) mm(inch)
- Max.refrigerant pipe length 30 mm
- Max.difference in level 20 mm
- Dimensions (WxDxH) /
- Packing(W*D*H) /
Room temperature
- Indoor(cooling/heating) 16-32/0-30℃
- Outdoor(cooling/heating) 0-50/-15-24℃
