Midea 60cm T-Shape Rangehood

60M77

800m³/h Airflow

Listed extraction airflow of 800m³/h helps reduce airborne cooking fumes, steam and odours.
Touch Control & Display

Touch controls and a digital display provide straightforward access to fan functions.
3 Fan Speeds

Three selectable extraction speeds provide ventilation flexibility for different dishes.
3-Minute Delay-Off

A three-minute delay-off function keeps the fan running briefly after cooking to help clear remaining fumes.
Dual LED Lighting

Two LED lights illuminate the hob and food preparation area underneath the canopy.
Washable Aluminium Filters

Two reusable aluminium mesh grease filters collect cooking grease and can be washed when needed.
Ducted or Recirculating

Choose external venting or recirculating operation, using a compatible carbon filter where required.

Full specifications

Features

Finish Stainless Steel | Black Glass
Type T-Shape Rangehood
Control type Touch Control
No. of speeds 3
Lighting 2x 1.5w LED
Filter Type 2x Triple Layer Black Aluminium Mesh Filter
Noise level 72 dB(A)*

Installation

Installation type Wall Mount
Ducting outlet size (mm) 150
Power Cord Length (m) 1.85

Technical specifications

Electrical connection 10A Plug & Lead
Total wattage 293W
Rated Voltage 220-240V ~ 50Hz

Product & Packaging information

Carton Dimensions(mm)(WxDxH) 680 x 385 x 650mm

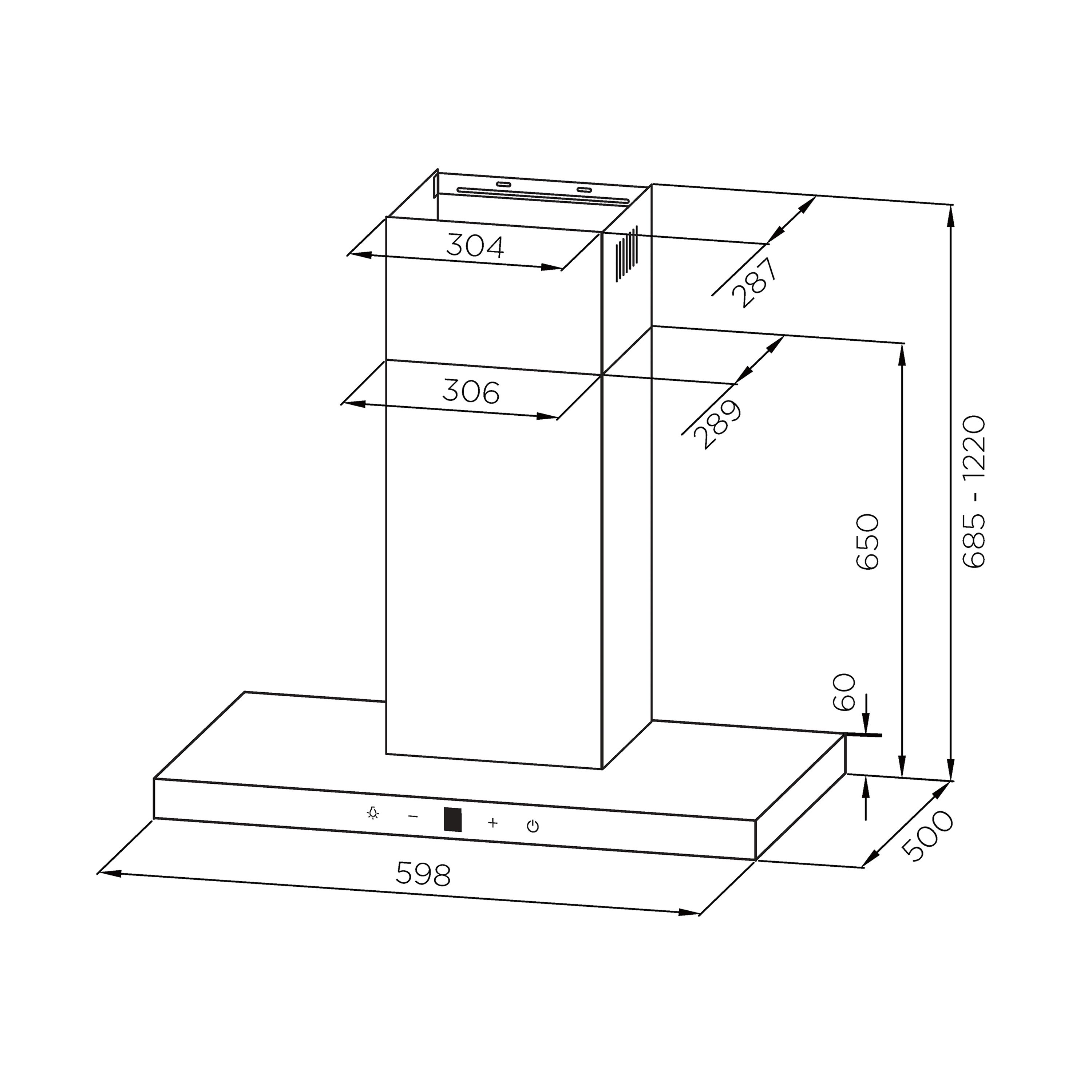

Product Dimensions (W x D x H) (mm) 598 x 500 x 650 - 1220mm
Gross Weight 16.4kg
Net weight 13.8kg
EAN 6939962575674

Warranty

Product 3 Years Parts & Labour
